IKINGBATT Stone Wool Semi-rigid Thermal Batt Insulation
IKINGBATT Stone Wool Semi-rigid Thermal Batt Insulation IKINGBATT Stone Wool Semi-rigid Thermal Batt Insulation

IKINGBATT Stone Wool Semi-rigid Thermal Batt Insulation

Product ID : IK-RWB120
Product Tags :
Product Description

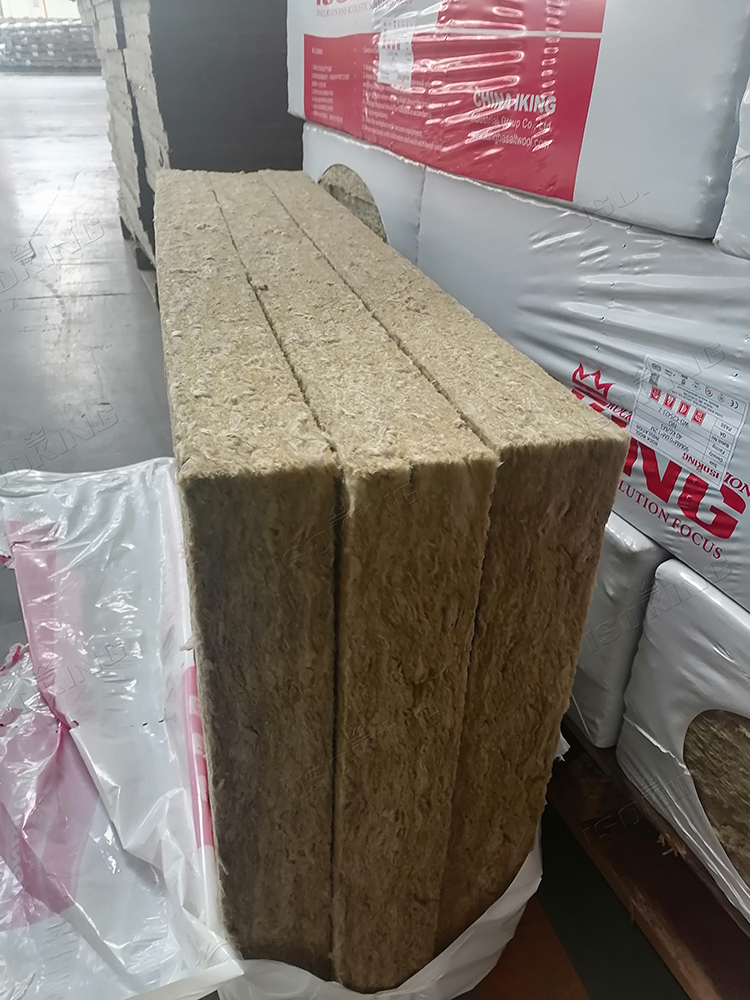

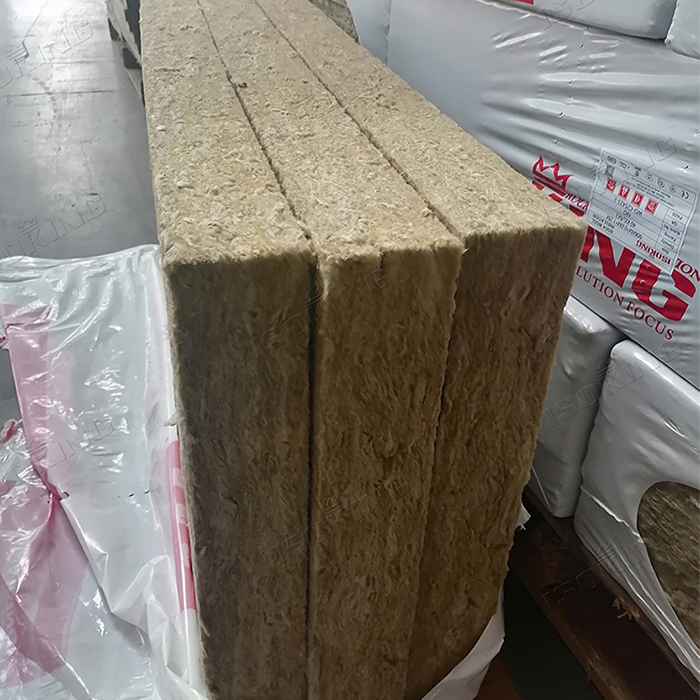

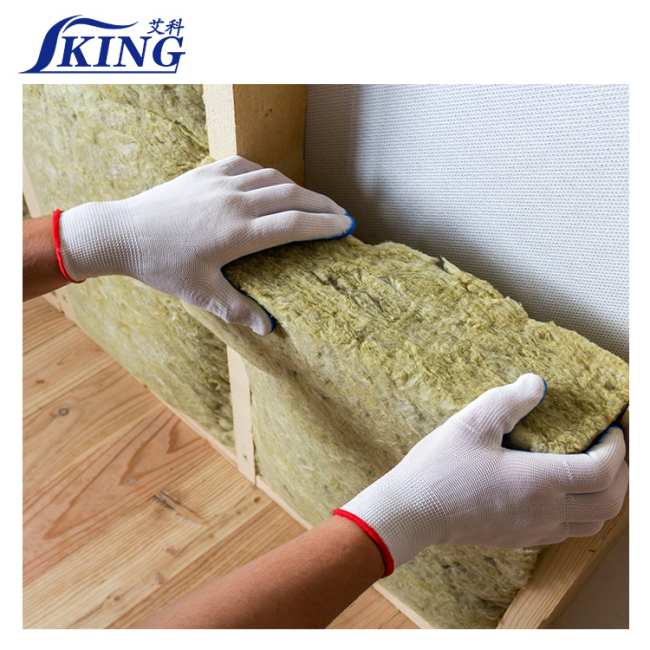

IKINGBATT® Rock Wool Batt is a semi-rigid stone wool thermal batt insulation for wood stud and steel stud applications.

Its special flexible edge makes installation simple and aids in preventing overcompression, which preserves the R-value.

Fire resistant and non-combustible, Even when it is placed close to a fire, it won't produce harmful smoke or encourage the spread of flames. It also provides exceptional sound absorption and resistance to dampness and humidity.
It is a practical method of raising a house's energy efficiency. It helps create a healthier atmosphere indoors.

R-value Thickness
(in)
Width(in) Length(in) Pieces Per Pack Framing width Construction
14 3.5 15.25 47 12 16" OC Wood Stud
14 3.5 23 47 8 24" OC Wood Stud
22 5.5 15.25 47 8 16" OC Wood Stud
22 5.5 23 47 5 24" OC Wood Stud
24 5.5 15.25 47 6 16" OC Wood Stud
24 5.5 22.75 47 4 24" OC Wood Stud
28 7.25 15.25 47 6 16" OC Wood Stud
28 7.25 23 47 4 24" OC Wood Stud
32 8 15.25 47 6 16" OC Wood Stud
32 8 23 47 4 24" OC Wood Stud
10 2.5 16.25 48 16 16" OC Steel Stud
14 3.5 16.25 48 12 16" OC Steel Stud
14 3.5 24.25 48 8 24" OC Steel Stud
22.5 6 16.25 48 8 16" OC Steel Stud
22.5 6 24.25 48 5 24" OC Steel Stud
24 6 16.25 48 8 16" OC Steel Stud
24 6 24.25 48 5 24" OC Steel Stud
32 8 16.25 48 6 16" OC Steel Stud

insulation batt

Technical Parameter:

  Performance Test Standard
Compliance Mineral Fibre Thermal Insulation for Buildings, Type 1 Compliant CAN/ULC S702
Reaction to Fire Flame spread index=0:Smoke developed index=0 CAN/ULC S102
Determination of Non-combustibility of Building Materials - Non-combustible CAN/ULC S114
Density > 2 lbs/ft3 (>32 kg/m3) ASTM C167
Thermal Resistance Wood Stud Steel Stud ASTM C518
R14(RSI 2.47)-3.5" thick (89 mm) R10 (RSI 1.76) -2.5" thick (64 mm)
R22 (RSI 3.87)-5.5" thick (140 mm) R14 (RSI 2.47)-3.5" thick (89 mm)
R24 (RSI 4.23)-5.5" thick (140 mm) R22.5 (RS 3.96)-6" thick (152 mm)
R28 (RS1 4.93) -7.25" thick (184 mm) R24 (RSI 4.23)-6" thick (152 mm)
R32 (RSI 5.64)-8"thick (203 mm) R32 (RSI 5.37)-8" thick (203 mm)
Dimensions Wood Stud 16" (406 mm) on centre: 15.25"x47"(387 mm x1194 mm)
  Wood Stud 24"(610 mm) on centre: 23"x47”(584 mm x 1194 mm)
  Steel Stud 16" (406 mm) on centre: 16.25"x48"(413 mm x 1219 mm)
  Steel Stud 24" (610 mm) on centre: 24.25"x48"(616 mm x 1219 mm)

rock wool insulation batt
