Ceramic Filber blanket for Wall

Product ID : KINGWOOL-CFB01

Product Tags :

Product Attributes :

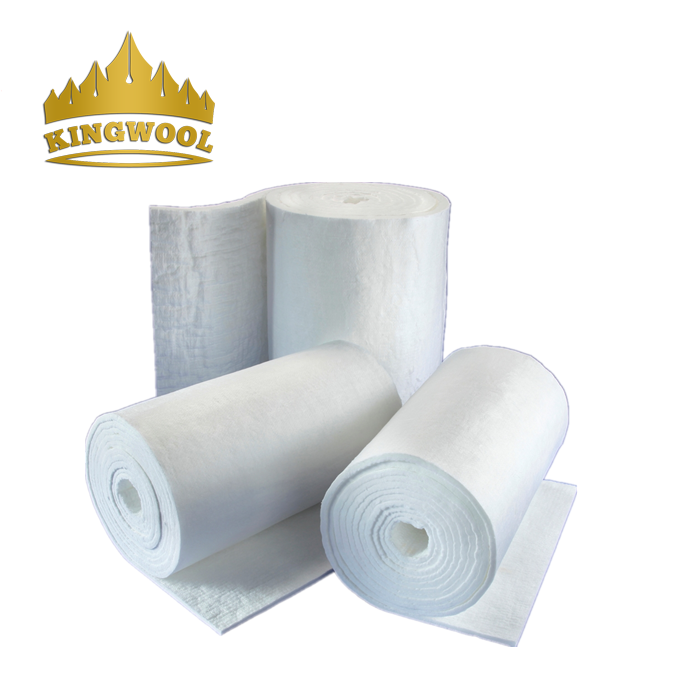

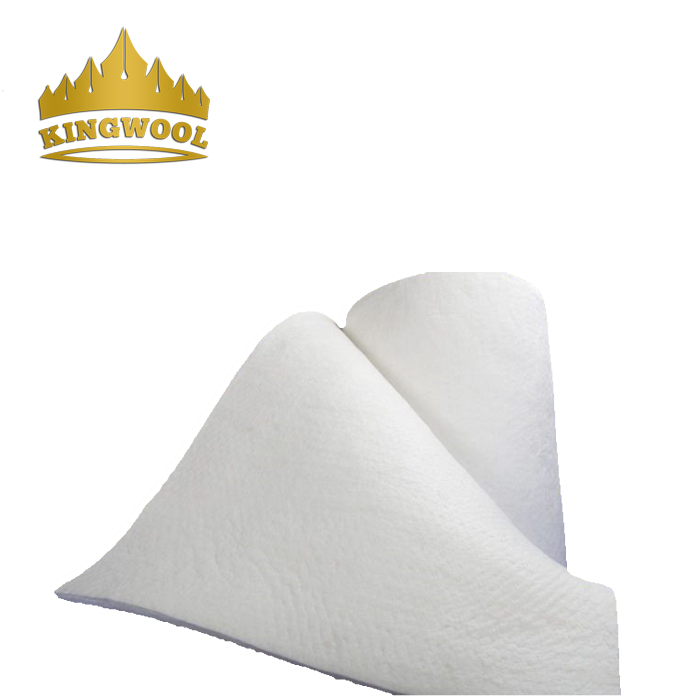

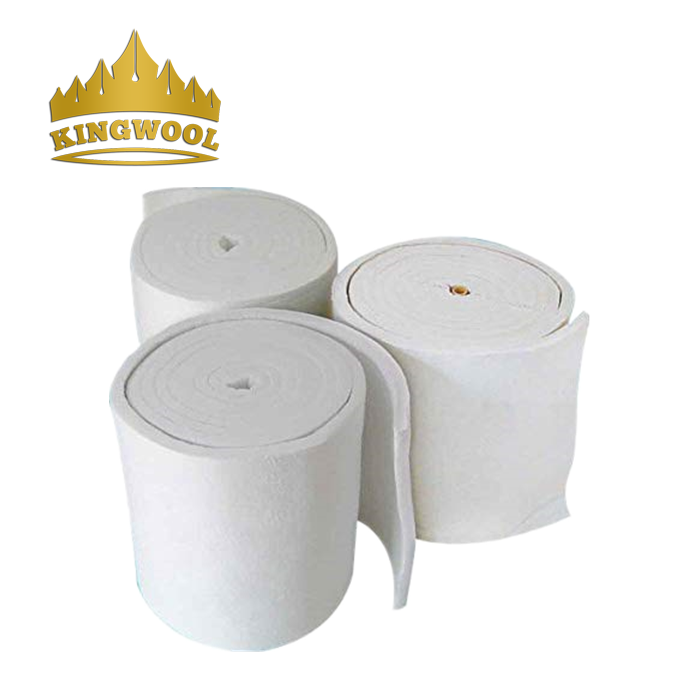

KINGWOOL®Ceramic Fiber Blanket is a lightweight insulating product. It has low thermal mass which means that it does not retain heat, low thermal conductivity and is an extremely effective insulation material. Its high thermal shock resistance make it suitable for applications where traditional refractories cannot be used. So called Refractory Ceramic Fiber is made from high purity alumino-silicate materials.

Product Description

SPECIFICATIONS：

Item	Unit	Index
Density	kg/m3	90-140
Thickness	mm	10-60
Length	mm	3/6/7.2
Width	m	610/1220

PROPERTIES：

KINGWOOL CERAMIC FIBER BLANKET

Description		COM	STD	HP	HA	HA
Classification Temperature（ºC）		1000	1260	1260	1360	1430
Working Temperature (°C)		< 1000	1050	1100	1200	1350
Color		white	white	white	white	white
Density (kg/m3)		96-128	96-128	96-128	128-160	128-160
Shrinkage(%)of heating 24 hours		-4	-3	-3	-3	-3
(as density 128 kg/m3)		(1000°C)	(1000°C)	(1100°C)	(1250°C)	(1350°C)
Thermal conductivity (w/m.k)(Density 128 kgs/ m3)		0.09(400°C)	0.09(400°C)	0.09(400°C)	0.12(600°C)	0.16(800°C)
Thermal conductivity (w/m.k)(Density 128 kgs/ m3)		0.16(800°C)	0.16(800°C)	0.16(800°C)	0.20(1000°C)	0.20(1000°C)
Tensile strength (MPa)		0.04	0.04	0.04	0.04	0.04
(density as 128kg/m3)		0.04	0.04	0.04	0.04	0.04
Chemical composition%	AL2O3	44	46	47-49	52-55	39-40
	AL2O3 & SIO2	96	97	99	-	-
	AL2O3 & SIO2 & ZrO2	-	-	-	99	99
	ZrO2	-	-	-	15-17	15-17
	Fe2O3	<1.2	<1.0	0.2	0.2	0.2
	Na2O & K2O	≤0.5	≤0.5	0.2	0.2	0.2

KINGWOOL® Ceramic Fiber Blanket is composed of long, flexible, interwoven FIBERs manufactured by the 'blown' and 'spun' process yielding a strong, lightweight yet durable fiber blanket for applications in a temperature range from 1260℃ to 1600℃.
