Ceramic Fiber Blanket
Ceramic Fiber Blanket

Ceramic Fiber Blanket

Product ID : KINGWOOL-CFB04
Product Tags :
Product Attributes :

KINGWOOL® Ceramic Fiber Blanket is a lightweight insulating product. It has low thermal mass which means that it does not retain heat, low thermal conductivity and is an extremely effective insulation material. Its high thermal shock resistance make it suitable for applications where traditional refractories cannot be used. So called Refractory Ceramic Fiber is made from high purity alumino-silicate materials.

Product Description

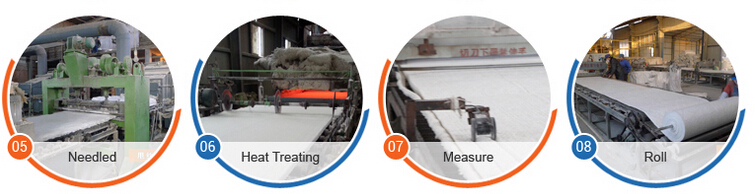

KINGWOOL® ceramic fiber blanket is made of high quality alumina-silicate ceramic fiber by using double side needling methods which improve the tensile strength and the flatness of the ceramic fiber blanket. Our ceramic fiber blanket contains no organic binders which guarantee the stability and constructability of the ceramic fiber blanket at both high temperature and low temperature. What’s more, We are one of the manufacturer who can produce ceramic fiber blanket of 6mm thickness.

SPECIFICATIONS



Item

Unit

Index

Density

kg/m3

90-140

Thickness

mm

10-60

Length

mm

3/6/7.2

Width

m

610/1220

PROPERTIES

KINGWOOL CERAMIC FIBER BLANKET



Description

COM

STD

HP

HA

HA

Classification  TemperatureºC

1000

1260

1260

1360

1430

Working Temperature (°C)

< 1000

1050

1100

1200

1350

Color

white

white

white

white

white

Density  (kg/m3)

96-128

96-128

96-128

128-160

128-160

Shrinkage(%)of heating 24 hours

-4

-3

-3

-3

-3

(as density 128 kg/m3)

(1000°C)

(1000°C)

(1100°C)

(1250°C)

(1350°C)

Thermal conductivity  (w/m.k)(Density 128 kgs/ m3)

0.09(400°C)

0.09(400°C)

0.09(400°C)

0.12(600°C)

0.16(800°C)

0.16(800°C)

0.16(800°C)

0.16(800°C)

0.20(1000°C)

0.20(1000°C)

Tensile strength (MPa)

0.04

0.04

0.04

0.04

0.04

(density as 128kg/m3)

Chemical composition%

AL2O3

44

46

47-49

52-55

39-40

AL2O3 & SIO2

96

97

99

-

-

AL2O3 & SIO2 & ZrO2

-

-

-

99

99

ZrO2

-

-

-

15-17

15-17

Fe2O3

<1.2

<1.0

0.2

0.2

0.2

Na2O & K2O

≤0.5

≤0.5

0.2

0.2

0.2

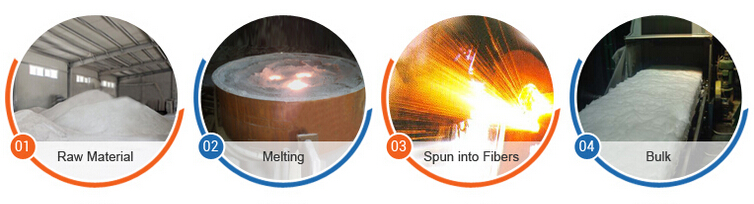

KINGWOOL® Ceramic Fiber Blanket is composed of long, flexible, interwoven FIBERs manufactured by the 'blown' and 'spun' process yielding a strong, lightweight yet durable fiber blanket for applications in a temperature range from 1260 to 1600.

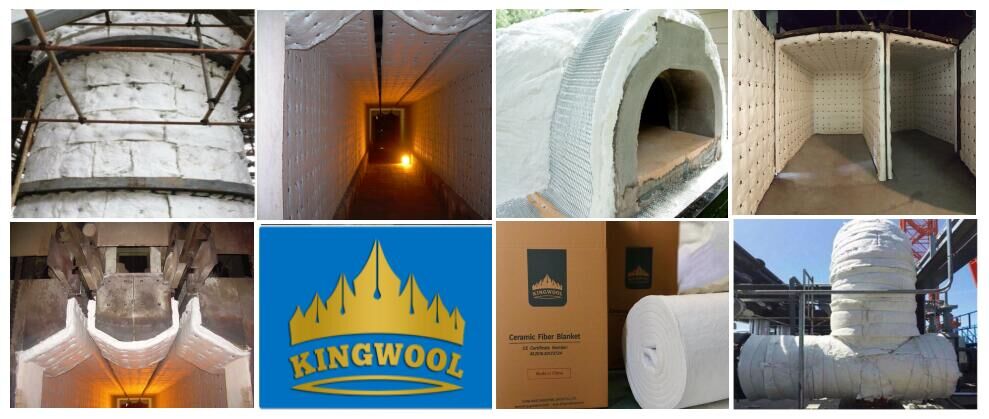

Application of KINGWOOL® Ceramic Fiber Blanke:

1. Refining and petrochemical

2. Reformer and pyrolysis furnaces

3. Tube seals, gaskets and expansion joints

4. High temperature pipe, duct and turbine insulation

5. Crude oil heater linings

6. Metallurgy and mechanism industry



7. Petrochemical industry and electroceramics

Take a look at our range of insulation and call our team of experts today for any queries or advice on 86-022-60767280.
